铝蜂窝复合板

铝蜂窝复合板
Aluminum honeycomb composite plate

产品性能
  比重轻、强度高、刚度大、结构稳定、抗风压性佳
  中港铝蜂窝幕墙板以其质轻、强度高、刚度大等诸多优点,被广泛应用于高层建筑外墙装饰。总厚度为15mm,面板底板均为1.0mm厚的铝蜂窝板只有6kg/m2。具有相同刚度的蜂
窝板重量仅为铝单板的1/5,钢板的1/10,相互连接的铝蜂窝芯就如无数个工字钢,芯层分布固定在整个板面内,使板块更加稳定,其抗风压性能大大超于铝塑板和铝单板,并具有
不易变形,平整度好的特点。即使蜂窝板的分格尺寸很大,也能达到极高的平整度,是目前建筑业首选的轻质材料。
Product introduction
Light weight, high strength, high stiffness,structural stability, excellent resistance to wind pressure
Zhonggang aluminum honeycomb with its light weight, high strength,high stiffness and many other advantages, is widely used in the decoration of the external walls of high - rise building. The total thickness of 15mm,the panel plate are l.0mm thick aluminum honeycomb panel is only 6kg/m2 .With honeycomb panel weight the same stiffness only single aluminum plate 1/5,1/10 steel plate, aluminum honeycomb core are connected with each other as countless I-steel, core layer distribution is fixedthroughout the plate, the plate is more stable, the wind resistance performance greatly than aluminum plate and aluminum single plate, and has not easy to deformation, the characteristics of good planeness. Even if the cell size honeycomb board is very big, also can achieve the smoothness high, is currently building industry preferred lightweight materials.

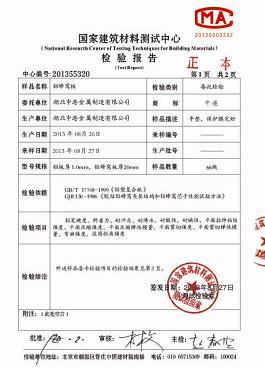

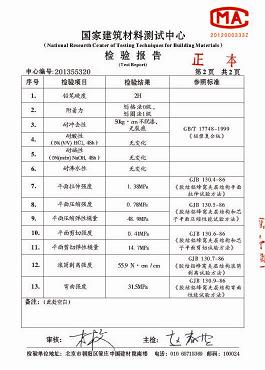

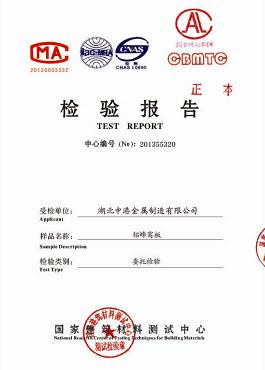

检测报告:





表面有惊人的平坦性,且色彩多样化
The surface flatness of the amazing, and diversified colors
  不同规格尺寸的蜂窝芯都具有极高的平整度,并且有不易变形的优点。本公司生产的铝蜂窝幕墙板、吊顶板主要采用氟碳预辊涂铝板,最重要的一点是采用连续预辊涂工艺。铝板的烤漆是一次性完成的,保证其产品无色差,图层流平度好,质量可靠,同时能长时间保持建筑外墙洁净光亮,并具有良好的附着力和耐候性,是世界建筑人士公认的一流材料。
  The honeycomb core of different sizes have smoothness high, and has the advantages of no easy deformation. Aluminium honeycomb curtain wall plate, ceiling board the company produces mainly adopts the fluorocarbon pre-roll coated aluminum sheet, the most important point is the use of continuous roller coating
technology. Aluminum paint is complete, ensure the products have no color, layer flow is good, reliablequality, and can keep a long time building exterior wall is clean and bright, and has a good adhesion and good weather resistance, is a first-class building materials are recognized in the world.

隔音、隔热、防火、防震功能突出
Sound insulation, heatinsulation, fire prevention, quakeproof.
由于蜂窝复合板内蜂窝芯分隔成众多个封闭的小室,阻止了空气流动,使热量和声波受到阻碍,对100-3200HZ的声源隔声可能减弱为20-30dB,热导率为0.1040.130W/M.K,因而铝蜂窝板的能量吸收力为150-3500KJ/m2,是一种理想的节能材料。如遇大雨时,雨点打在铝单板或铝塑板面上是噪音特别大,而铝蜂窝板就避免了这一种况。
The honeycomb composite plate honeycomb core is divided into a number of closed chamber, to prevent the air flow, heat and sound wave is hindered, the 100-3200HZ sound insulation may decrease as 20-30dB, thermal conductivity is 0.1040.130W/M.K, so the aluminum honeycomb energy absorption capacity,150-3500KJ/m2, is an ideal energy-saving materials. In case of rain, rain on single aluminum plate or aluminum plate is very noisy, and aluminum honeycomb panel to avoid this kind of situation.

产品说明 Product description
随着建筑业的发展,外墙、内墙及天花的首选材料,原用于航天事业的金属蜂窝板材,有着特殊的物理结构,材质轻盈,能大大增强板面的平整度和强度,有很强的抗风、
抗压能力;大规格的板面也能保证平整度,这足以满足设计上的任何需要,因此能大量应用在现今建筑物上,成为最合适的外墙和天花装饰板材。中港盒式蜂窝铝板,材料全部选用
进口原材,包括聚酯烤漆或氟碳滚涂PVDF铝卷、铝合金蜂窝、PU混合胶等;板材以连续性液压方式成型,经自动喷胶、加热覆合生产处理;铝板最大规格1500x5000mm,标准厚度为
11mm或25mm,产品适用于任何建筑物外墙、内墙装饰板和高要求的天花板材。
With the development of the construction industry, the material of choice forexterior wall, interior wall and ceiling, metal honeycomb plate used
in the aerospace industry, has a physical structure, special material lightsome, can greatly enhance the flatness and the strength of the board surface,
strong wind resistance, compressive ability; the greater size of the plate surface is also to ensure the smoothness of, which is enough to meet any need to
design, so a large number of applications in modern buildings, become the most suitable wall and ceiling decoration plate. Zhonggang aluminum honeycomb,
materials are all imported raw materials, including polyester paint or fluorocarbon coating PVDF aluminum coil, aluminum alloy honeycomb, PU mixed glue;
plate with the continuous hydraulic molding, spraying, automatic heating coating production processing; aluminum maximum size of 1500x5000mm, the standard
thickness of 11mm or 25mm, the product is applicable to any building outer wall, inner wall decorative plate and the high requirements of the ceiling plate.
铝蜂窝板规格型号及力学性能
Aluminum honeycomb panel specifications and mechanical properties
其他类型和规格可根据客户要求定做,表层涂层:正面板为KYNA500氟碳喷涂,背板采用聚酯烤漆。
Other types and specifications can be customized according to customer requirements,surface coating: the front panel of KYNA500 fluorocarbon spraying,
backplane using polyester paint.
